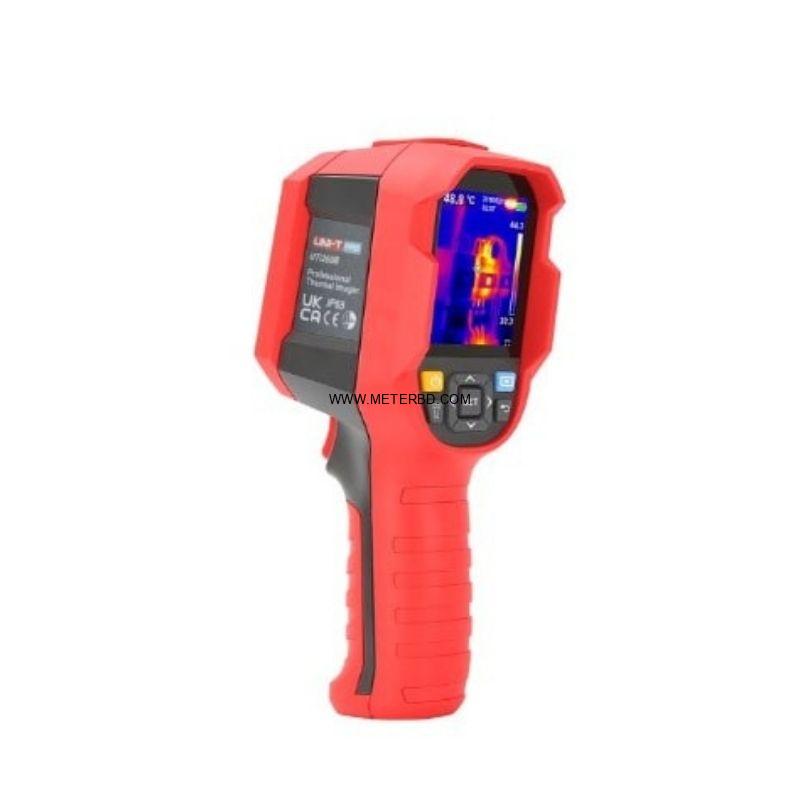

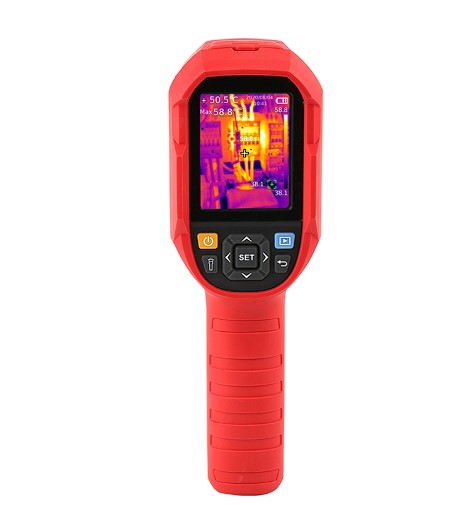

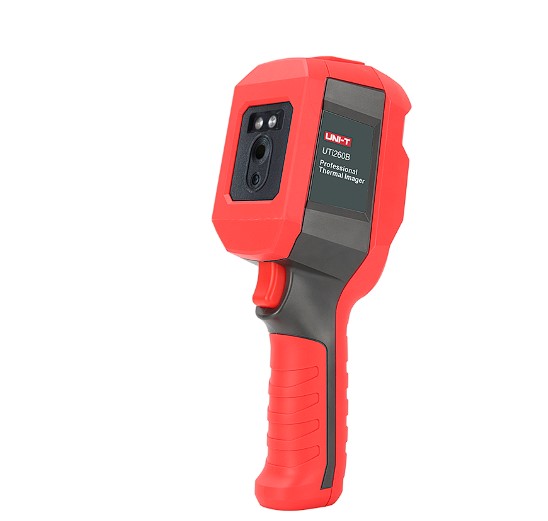

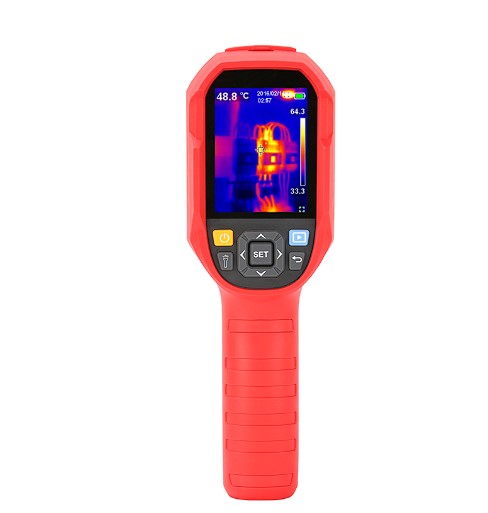

UNI-T-260B Digital Thermal Imager Price in Bangladesh
| Technical Data | |
| IR resolution (Pixels) | 256×192 |
| Display | 2.8” TFT LCD (320×240) |
| Field of view(FOV) | 56°×42° |
| Thermal sensitivity(NETD) | ≤60mK |
| Spatial resolution(IFOV) | 3.8mrad |
| Frame rate | ≤25Hz |
| Spectral range | 8~14µm |
| Focus | Focus Free |
| Temperature measurement range | -20℃~550℃ |
| Accuracy | ±2℃ or ±2% whichever is greater |
| Emissivity | 0.01~1.00 adjustable (0.95 default) |
| Functions | |
| Color palettes | 7 (White hot, Black hot, Red hot, Ironbow, Lava, Rainbow, Rainbow HC) |
| Image modes | Thermal,Visual image,Fusion,PIP |
| On screen analyzer | 3 Points |
| Digital camera resolution | 640×480 |
| Hi/Lo temperature alarm | Icon,LED flashlight |
| PC software analysis | √ |
| General Characteristics | |
| Battery | Fixed Li-ion battery (3.6V 5000mAh) |
| Battery operation time | ≥ 6 hours |
| USB | Type-C |
| IP rating | IP65 |
| Drop proof | 2m |
| Storage | Up to 32GB Micro SD card |
| Image/Video storage format | BMP |
| Certificates | CE,FCC,RoHS |
| Product net weight | 490g |
| Product size | 236mm×75.5mm×86mm |
| Packing Details | |
| Standard accessories | Micro SD card, Type-C USB cable, English manual,Documents download operation guide card |
| Standard individual packing | Gift box |
| Standard Qty per carton | 10 |
| Standard carton size | 500mm×315mm×295mm |
| Standard carton G.W. | 10.1kg |
