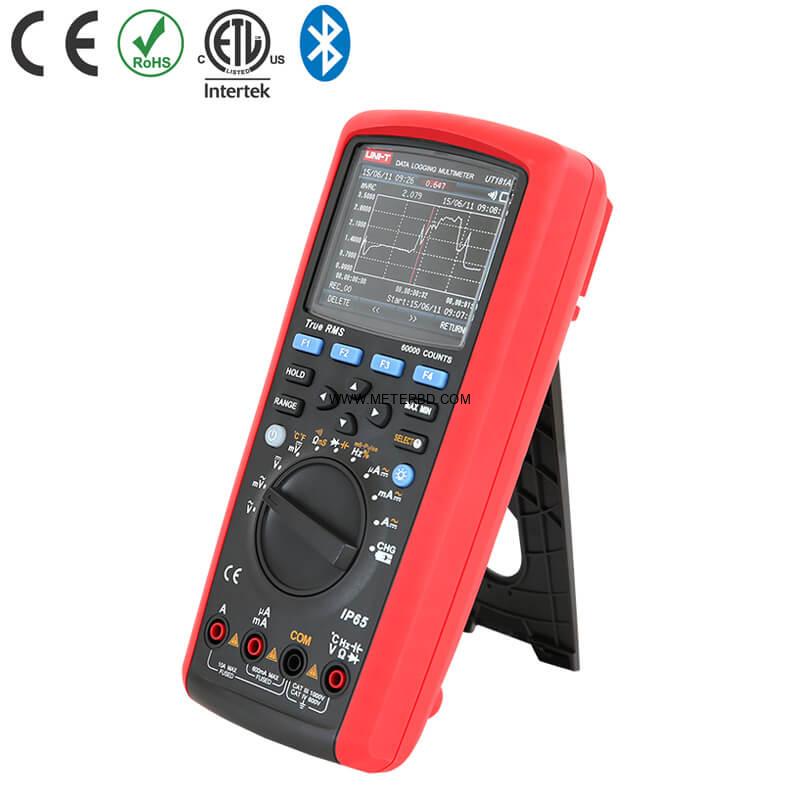

UNI-T UT181A True RMS Datalogging Multimeter Price in BD

UNI-T UT181A True RMS Datalogging Multimeter Price in BD

Specifications of UT181A True RMS Datalogging Multimeter

Specifications Range UT181A
DC voltage (V) 1000V ±(0.025%+5)
AC voltage (V) 1000V ±(0.3%+30)
DC current (A) 10A ±(0.08%+10)
AC current (A) 10A ±(0.6%+20)
Resistance (Ω) 60MΩ ±(0.05%+2)
Admittance (nS) 60nS ±(2%+10)
Capacitance (F) 60mF ±(2%+5)
Frequency (Hz) 10Hz~60MHz ±(0.01%+5)
Temperature (°C) -40°C~1000°C ±(1%+30)
Temperature (°F) -40°F~1832°F ±(1.5%+50)
Features
Display count 60000
Auto/Manual range √
Bandwidth (Hz) 100kHz √
AC+DC/Continuity buzzer √
Low pass filter 1kHz √
dBV/dBm √
Diode Around 3V √
Duty cycle 10%~90% √
Dual temperature measurement T1, T2, T1-T2, T2-T1 √
Data hold/Peak hold √
Relative mode √
Data logging 20000 √
Trend capture √
MAX/MIN/AVG √
Data time display/Data comparison √
Backlight adjustment √
Analog bar graph/USB interface √
Mis-plug alarm √
Battery indication/Auto power off √
Rechargeable battery √
Input protection √
Input impedance for DCV ≥10MΩ √
