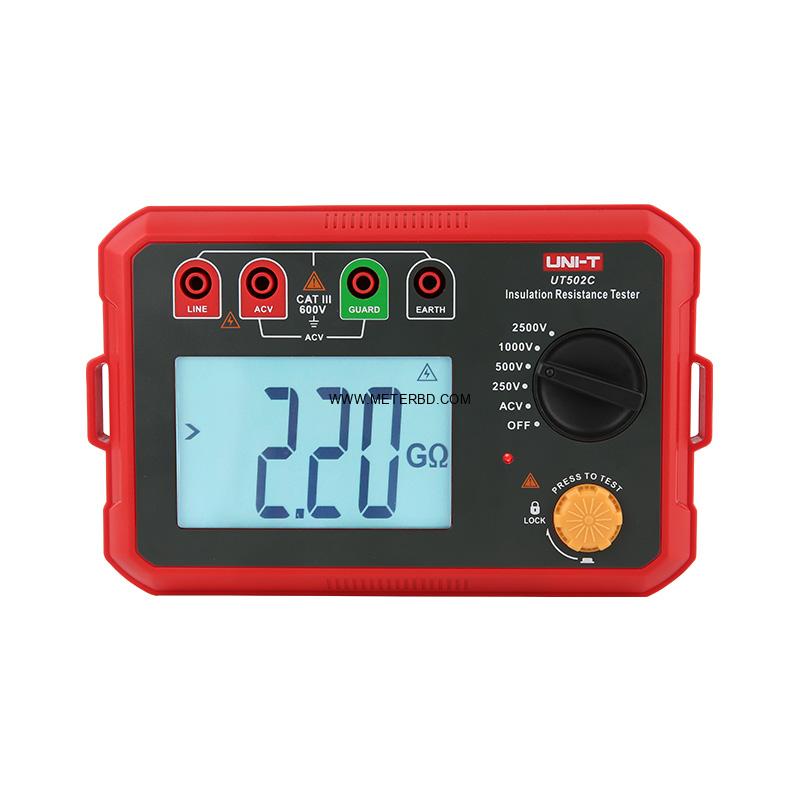

UNI-T UT502C Insulation Resistance Tester 2.5 KV

UNI-T UT502C Insulation Resistance Tester 2.5 KV

UNI-T UT502C Insulation Resistance Tester 2.5 KV

Specifications Output Voltage Measurement Range UT502C
Insulation Resistance Measurement 100V 0.00MΩ～100MΩ
250V 0.00MΩ～500MΩ √
500V 0.00MΩ～2.00GΩ √
1000V 0.00MΩ～5.00GΩ √
2500V 0.00MΩ～20.0GΩ √
Accuracy 0.00MΩ～99.9MΩ: ±(3%+5)
100MΩ～5.00GΩ: ±(5%+5)
0.00MΩ～99.9MΩ: ±(3%+5)
100MΩ～9.99GΩ: ±(5%+5)
10.0GΩ～20.0GΩ: ±(10%+5) √
Voltage Measurement Range AC: 30V～750V (50Hz/60Hz)， ±(2%+3)
Short-Circuit Current <2mA Powered by Adaptor (optional,without charging function) 6×1.5V AA alkaline batteries Auto Power Off √ Self-Lock Function √ Low Battery Indication √ Data Hold √ Auto Discharge √ Audible and Visual Alarm √ Overrange Indication √ Backlight function √ Altitude ≤2000 m Operating temperature and Humidity 0℃~35℃,<75% RH Storage temperature and Humidity -20℃~60℃,<80% RH
