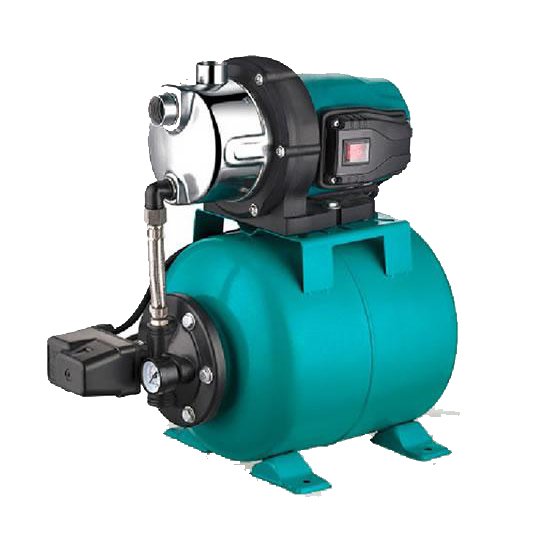

Domestic Pressure Boosting Pump Features
- Unique ergonomic design.
- Max. fluid temperature: +35℃.
- Max. suction: +8 m.
Domestic Pressure Boosting Pump Motor Features
- C & U bearing.
- Built-in thermal protector.
- Aluminum winding.
- Insulation class: F.
- Protection class: IPX4.
- Max. ambient temperature: +40℃.
| Pump Model | Power | Phase | Flow (liter / Min) | Head (Meter) | Pipe Size (SN-DN) | |
| HP | KW | |||||
| APSm 37AT | 0.50 | 0.37 | ~1 | 5-40 | 35-2 | 1″X1″ |
| APm37A5 (With Pressure Tank) | 0.50 | 0.37 | ~1 | 5-35 | 35-2 | 1″X1″ |
| APSm 75AT | 1.00 | 0.75 | ~1 | 5-50 | 58-3 | 1″X1″ |
| FJm37SE (Intelligent Jet Pump) | 0.50 | 0.37 | ~1 | 5-55 | 35-6 | 1″X1″ |
| FJm75SE (Intelligent Jet Pump) | 1.00 | 0.75 | ~1 | 5-65 | 43-6 | 1″X1″ |
| AJm75 SA5 (With Pressure Tank) | 1.00 | 0.75 | ~1 | 5-65 | 38-23 | 1″X1″ |
| MAC 550 (Intelligent variable speed, Permanent Magnet Pump) | 0.75 | 0.55 | ~1 | 10-83 | 40-5 | 1″X1″ |
| BP-ECH-4-60S (Integrated Inverter Controller) | 1.50 | 1.10 | ~3 | 17-117 | 55-26 | 1.5″X1″ |
| BP-EDH-10-50 (Integrated Inverter Controller) | 3.00 | 2.20 | ~3 | 83-233 | 47-18 | 2″X2″ |
| BP-EDH-20-30 (Integrated Inverter Controller) | 5.50 | 4.00 | ~3 | 150-517 | 41.2-22 | 2″X2″
|
