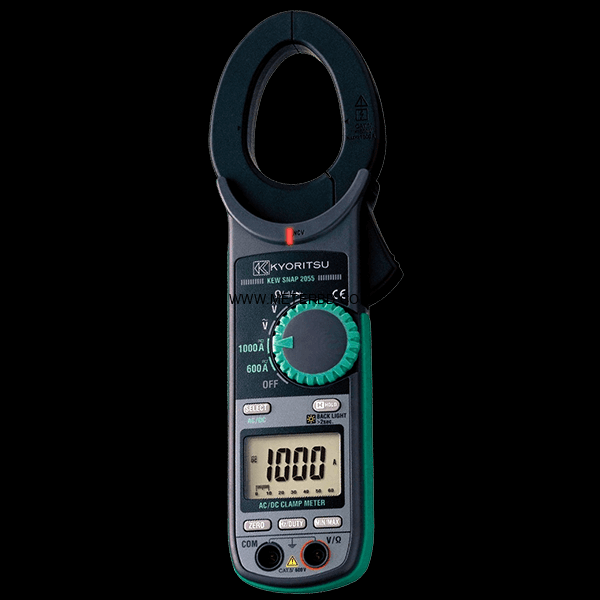

Model: Kew2055 Digital Clamp Meter Distributor in Bangladesh

Model: Kew2055 Digital Clamp Meter Distributor in Bangladesh

Model: Kew2055 Digital Clamp Meter Distributor in Bangladesh

Specification
AC A 0 – 600.0/1000A
±1.5%rdg±5dgt (50/60Hz)
±3.0%rdg±5dgt (40 – 400Hz)
DC A 0 – 600.0/1000A
±1.5%rdg±5dgt
AC V 6/60/600V(Auto-ranging)
±1.3%rdg±4dgt (50/60Hz)
±3.0%rdg±5dgt (40 – 400Hz)
DC V 600mV/6/60/600V(Auto-ranging)
±1.0%rdg±3dgt
Ω 600Ω/6/60/600kΩ/6/60MΩ (Auto-ranging)
±1%rdg±5dgt (600 – 6M)
±5%rdg±8dgt (60M)
Continuity buzzer Buzzer Sounds at 100Ω
Frequency 10/100Hz/1/10kHz(Auto-ranging)
DUTY 0.1 – 99.9%
Conductor size Ø40mm
Safety Standard IEC 61010-1 CAT IV 600V, IEC 61010-031,
IEC 61010-2-032, IEC 61326
Power source R03 (1.5V) (AAA) × 2
Dimension 254(L) × 82(W) × 36(D)mm
Weight Approx. 310g
